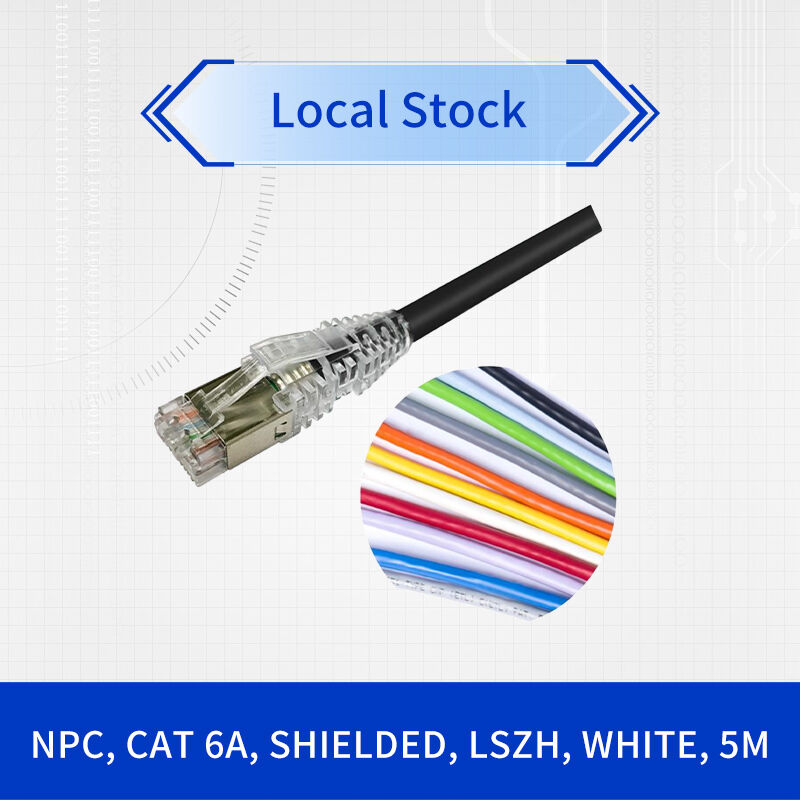

Professional Cat6E SFTP Shielded Patch Cord - NPC6ASZDB High-Speed Ethernet Cable for Data Centers
تفاصيل المنتج:
| اسم العلامة التجارية: | Commscope |
| رقم الموديل: | NPC6ASZDB-WT005M |
| وثيقة: | NPC6ASZDB.pdf |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 قطعة |
|---|---|
| الأسعار: | Negotiate |
| تفاصيل التغليف: | صندوق |
| وقت التسليم: | على أساس المخزون |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | العرض بواسطة المشروع/الدفعة |
|
معلومات تفصيلية |
|||
| فئة ANSI/TIA: | 6A | نوع الكابل: | S/FTP (محظور) |
|---|---|---|---|
| نوع الموصل: | تطور متعدد الخيوط | الموصل أ: | قابس RJ45 |
| خصائص الموصل، الموصل أ: | معيار | الموصل ب: | قابس RJ45 |
| خصائص الاتصال، الموصل B: | معيار | طول: | 5M |
| إبراز: | Cat6E SFTP shielded Ethernet cable,high-speed data center patch cord,NPC6ASZDB shielded network cable,high-speed data center patch cord,NPC6ASZDB shielded network cable |
||
منتوج وصف
Professional Cat6E SFTP Shielded Patch Cord - NPC6ASZDB High-Speed Ethernet Cable for Data Centers
NPC6ASZDB Cat6E SFTP Shielded Patch Cord
Premium Ethernet Connectivity for Demanding Network Environments
Product Overview
The NPC6ASZDB represents the pinnacle of Cat6E SFTP patch cord technology, engineered to deliver exceptional performance in high-density network environments. This shielded twisted pair patch cord combines advanced shielding technology with robust construction to ensure reliable 10Gbps data transmission.
10Gbps
Data Speed
500MHz
Bandwidth
100m
Maximum Reach
LSZH
Safety Rating
Technical Specifications
| Parameter | Specification | Details |
|---|---|---|
| Category Rating | Cat6E/6A | Enhanced Category 6 Performance |
| Shielding Type | SFTP | Shielded Foiled Twisted Pair |
| Connectors | RJ45 | 8P8C Gold Plated |
| Cable Diameter | 5.84mm | 0.23 inches |
| Operating Temp | -20°C to +60°C | -1°F to +140°F |
Color Options & Identification
Applications & Use Cases
Data Centers
Ideal for server racks, switch interconnections, and storage area networks where reliable high-speed connectivity is critical.
Enterprise Networks
Perfect for office environments, workstation connections, and network infrastructure deployments.
Industrial Settings
Withstands challenging environments while maintaining signal integrity and performance.
Compliance & Certifications
- ANSI/TIA-568.2-D Category 6A
- ISO/IEC 11801 Class EA
- IEEE 802.3b1 Type 4
- UL 1863 Safety Certified
- ANATEL Certified
- Low Smoke Zero Halogen
- RoHS Compliant
- REACH Compliant
Installation Guidelines
- Maintain minimum bend radius of 25mm during installation
- Ensure proper grounding for optimal shielding performance
- Avoid excessive tension during cable pulling
- Use appropriate cable management accessories
- Verify performance with certified testing equipment
