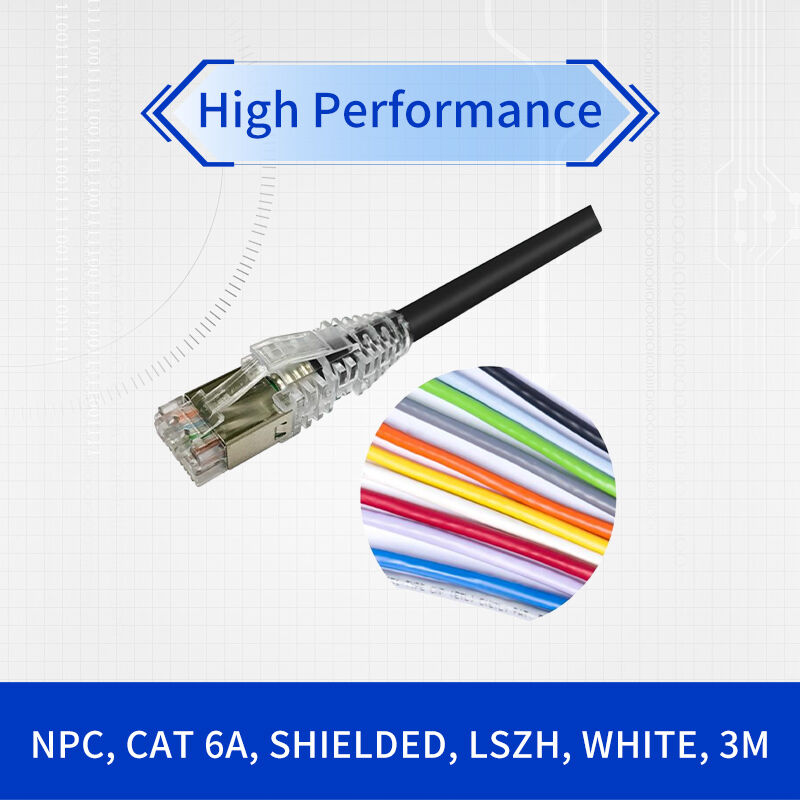

NPC6ASZDB Shielded Cat6E Patch Cable - High-Speed 10Gbps Ethernet Cord with RJ45 Connectors
تفاصيل المنتج:
| اسم العلامة التجارية: | Commscope |
| رقم الموديل: | NPC6ASZDB-WT003M |
| وثيقة: | NPC6ASZDB.pdf |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 قطعة |
|---|---|
| الأسعار: | Negotiate |
| تفاصيل التغليف: | صندوق |
| وقت التسليم: | على أساس المخزون |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | العرض بواسطة المشروع/الدفعة |
|
معلومات تفصيلية |
|||
| فئة ANSI/TIA: | 6A | نوع الكابل: | S/FTP (محظور) |
|---|---|---|---|
| نوع الموصل: | تطور متعدد الخيوط | الموصل أ: | قابس RJ45 |
| خصائص الموصل، الموصل أ: | معيار | الموصل ب: | قابس RJ45 |
| خصائص الاتصال، الموصل B: | معيار | طول: | 3M |
| إبراز: | Shielded Cat6E Ethernet cable,10Gbps RJ45 patch cord,High-speed Cat6E network cable,10Gbps RJ45 patch cord,High-speed Cat6E network cable |
||
منتوج وصف
NPC6ASZDB Shielded Cat6E Patch Cable - High-Speed 10Gbps Ethernet Cord with RJ45 Connectors
NPC6ASZDB Cat6E Shielded Network Patch Cord - Premium Ethernet Connectivity
Performance Highlights
- Enhanced EMI/RFI shielding technology
- 10Gbps data transmission capability
- Low smoke zero halogen safety jacket
- High-density deployment optimized
- Industrial-grade durability
- Global compliance certifications
Technical Specifications
Physical Properties
Cable Type: SFTP Cat6E
Jacket Material: LSZH
Diameter: 5.84mm
Colors: 9 options available
Performance Data
Data Rate: Up to 10Gbps
Frequency: 500MHz
Voltage Rating: 300V
Impedance: 100Ω ±15%
Applications & Deployment
This high-performance Cat6E patch cord is engineered for critical network infrastructure including:
- Data Centers: Server connectivity and switch interconnections
- Enterprise Networks: Workstation to wall plate connections
- Industrial Automation: Factory floor networking
- Healthcare Facilities: Medical equipment connectivity
- Educational Institutions: Classroom and lab deployments
Compliance & Certifications
| Standard | Description | Compliance |
|---|---|---|
| ANSI/TIA-568.2-D | Category 6A Performance | Fully Compliant |
| ISO/IEC 11801 | Class EA Specifications | Fully Compliant |
| UL 1863 | Safety Certification | Certified |
| IEEE 802.3b1 | Type 4 Compatibility | Compatible |
Installation Guidelines
Critical Installation Parameters
- Maintain minimum bend radius of 25mm during installation
- Ensure proper grounding for shielded systems
- Use appropriate cable management to avoid stress on connectors
- Verify termination with certified test equipment
- Follow local electrical codes and regulations
