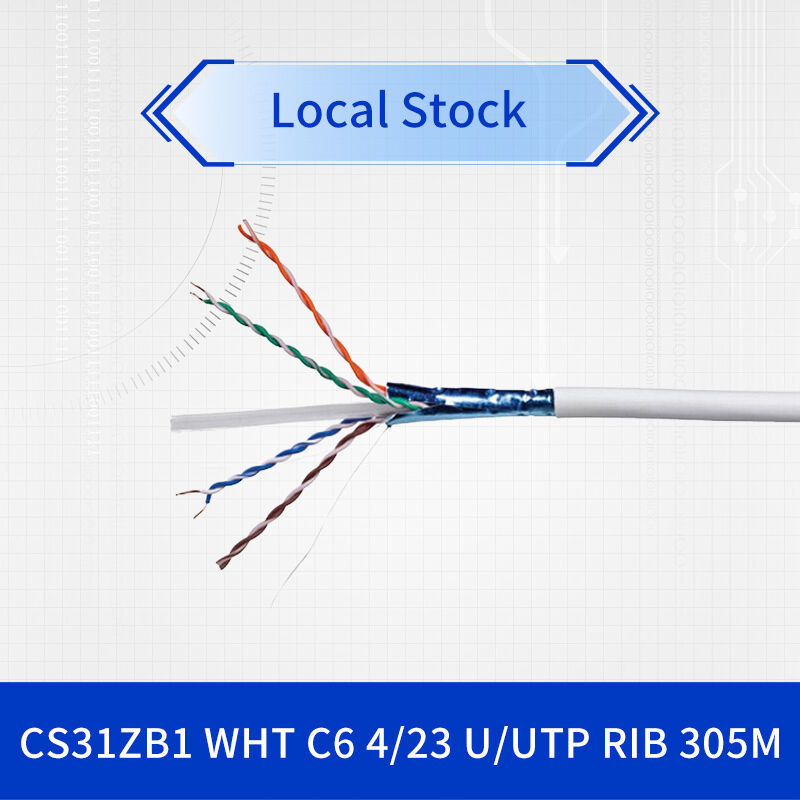

CommScope NETCONNECT Category 6 U/UTP Network Cable with 23 AWG Conductors, China B1 Fire Rating, and 305-meter Reel

The CommScope CS31ZB1 WHT C6 4/23 U/UTP RIB 305M delivers reliable Category 6 performance in a versatile unshielded cable design. This UTP cable combines advanced electrical characteristics with comprehensive application support for diverse networking environments. The white LSZH jacket and China B1 fire rating make this network cable particularly suitable for commercial installations where safety and performance requirements are equally important.

• Multi-Protocol Support: Compatible with 1000BASE-T, VoIP, ATM, and legacy networking protocols
• Enhanced Safety Rating: China B1 fire performance classification for improved fire safety
• Advanced Testing: All electrical transmission tests include swept frequency measurements
• PoE Ready: Compliant with IEEE 802.3bt (Type 4) for Power over Ethernet applications
• Global Standards: Meets ANSI/TIA-568.2-D, ISO/IEC 11801 Class E, and YD/T 1019 requirements

• Category 6 U/UTP unshielded cable with 4-pair configuration
• 23 AWG solid bare copper conductors for optimal signal transmission
• White Low Smoke Zero Halogen (LSZH) jacket material
• Integrated isolator for reduced crosstalk and interference
• 305-meter reel-in-box packaging for convenient installation
• Operating temperature range: -20°C to +60°C

This Category 6 UTP cable incorporates advanced manufacturing techniques with comprehensive swept frequency testing to ensure consistent performance across all supported applications. The network cable meets multiple international standards including ANSI/TIA-568.2-D, ISO/IEC 11801 Class E, CENELEC EN 50288-6-1, IEC 61156-5, and China's YD/T 1019 standard. Environmental compliance includes RoHS, China-RoHS, UK-RoHS, and REACH-SVHC requirements.

The Category 6 U/UTP cable operates using precisely twisted copper pair technology to maintain signal integrity while minimizing electromagnetic interference. The four individually twisted pairs within the network cable maintain specific twist ratios that cancel external noise and reduce internal crosstalk. The UTP cable design relies on balanced differential signaling, where noise affecting both conductors in a pair is effectively canceled at the receiver. This Category 6 cable maintains 100-ohm characteristic impedance with minimal delay skew (45 ns maximum) for reliable high-speed data transmission.

This versatile UTP cable supports a wide range of networking applications including enterprise LANs, educational institutions, healthcare facilities, and government buildings. The network cable is particularly well-suited for horizontal cabling in commercial structures where multiple protocols may be deployed. The Category 6 U/UTP cable's China B1 fire rating makes it ideal for installations requiring enhanced fire safety compliance in the Chinese market, while supporting both legacy and modern networking technologies.

The CS31ZB1 Category 6 UTP cable offers significant advantages through its combination of comprehensive protocol support, enhanced fire safety rating, and advanced electrical testing. Compared to standard Category 6 cables, this network cable includes swept frequency measurements for all electrical transmission tests, ensuring consistent performance across the entire frequency spectrum. The China B1 fire performance classification provides superior safety compliance for installations in the Chinese market, while the UTP cable design maintains compatibility with a wide range of networking equipment and protocols.

CommScope provides comprehensive technical support for all NETCONNECT products, including this Category 6 UTP cable. The network cable is manufactured under stringent quality control standards and complies with global environmental regulations. The reel-in-box packaging ensures convenient handling and storage while minimizing material waste during installation projects.

This Category 6 UTP cable supports a comprehensive range of protocols including 1000BASE-T, 100BASE-TX, 10BASE-T, VoIP, 155Mbps ATM, TP-PMD, and Token Ring, making it suitable for both modern and legacy network installations.

The China B1 classification indicates superior fire performance with reduced flame spread characteristics, making this UTP cable suitable for installations requiring enhanced fire safety compliance in the Chinese market.

Yes, this Category 6 network cable fully complies with IEEE 802.3bt (Type 4) recommendations for safe Power over Ethernet delivery when installed according to relevant international standards.

This UTP cable can be installed in temperatures from 0°C to +60°C and operates reliably from -20°C to +60°C, with storage capability from -20°C to +80°C.

When installing this Category 6 UTP cable, maintain a minimum bend radius of 4 times the outer cable diameter to prevent performance degradation. The maximum pulling tension should not exceed 22.5 lb (10.206 kg) to avoid damaging the conductors. For PoE applications, ensure proper installation according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A guidelines to maintain safety and performance. The network cable's China B1 fire rating makes it particularly suitable for installations requiring enhanced fire safety compliance.
