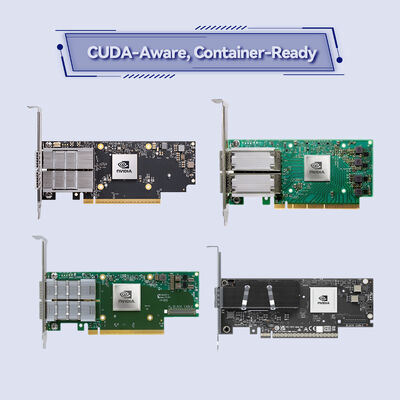

NVIDIA MCX653106A-HDAT ConnectX-6 Dual-Port 200Gb/s InfiniBand Adapter | HDR Smart NIC for HPC & AI
تفاصيل المنتج:
| اسم العلامة التجارية: | Mellanox |
| رقم الموديل: | MCX653106A-HDAT |
| وثيقة: | connectx-6-infiniband.pdf |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1 قطعة |
|---|---|
| الأسعار: | Negotiate |
| تفاصيل التغليف: | الصندوق الخارجي |
| وقت التسليم: | على أساس المخزون |
| شروط الدفع: | تي/تي |
| القدرة على العرض: | العرض بواسطة المشروع/الدفعة |
|
معلومات تفصيلية |
|||
| حالة المنتجات: | مخزون | طلب: | الخادم |
|---|---|---|---|
| حالة: | جديد وأصلي | يكتب: | سلكية |
| السرعة القصوى: | ما يصل إلى 200 جيجابايت/ثانية | موصل Ethernet: | QSFP56 |
| نموذج: | MCX653106A-HDAT | ||
| إبراز: | NVIDIA ConnectX-6 InfiniBand adapter,Mellanox HDR Smart NIC,dual-port 200Gb/s network card,Mellanox HDR Smart NIC,dual-port 200Gb/s network card |
||
منتوج وصف
The NVIDIA® ConnectX®-6 MCX653106A-HDAT is a high-performance, dual-port smart adapter card engineered to accelerate the most demanding data centers. As a cornerstone of the NVIDIA Quantum InfiniBand platform, this network interface card provides two QSFP56 ports, each capable of 200Gb/s InfiniBand HDR or Ethernet connectivity. Its defining innovation is In-Network Computing, which transforms the network card from a passive data pipe into an active compute element, offloading operations from the CPU to boost application performance and scalability for High-Performance Computing (HPC), Artificial Intelligence (AI), and hyperscale cloud infrastructures.
- Extreme Performance: Delivers up to 200Gb/s per port (400Gb/s aggregate) with ultra-low latency and up to 215 million messages per second
- In-Network Computing: Revolutionary technology offloads computation and memory access to dramatically increase system efficiency
- Built-in Security: Hardware-offloaded XTS-AES 256/512-bit block-level encryption ensures data-in-transit security without CPU overhead
- Dual-Protocol Flexibility: Supports both InfiniBand HDR (200G) and high-speed Ethernet (up to 200GbE) on the same card
- Comprehensive Offloads: Advanced offloads for NVMe-of, Storage, MPI, and Virtualization (SR-IOV)
| Parameter | Specification |
|---|---|
| Product Model | MCX653106A-HDAT |
| Port Configuration | 2 x QSFP56 |
| Max Speed per Port | 200 Gb/s (InfiniBand HDR / 200GbE) |
| Host Interface | PCIe 4.0 x16 (3.0 compatible) |
| Form Factor | Full-Height, Full-Length PCIe Card |
| Security | XTS-AES 256/512-bit Block Encryption |
| Virtualization | SR-IOV (Up to 1000 Virtual Functions) |
| Protocol Support | InfiniBand (HDR/EDR), Ethernet (200/100/50/40/25/10/1 GbE |
| Software Support | Linux, Windows Server, VMware, OFED |
- In-Network Computing: Offloads collective communication operations and memory access directly into the network
- RDMA (Remote Direct Memory Access): Enables direct memory-to-memory data transfer between servers
- NVIDIA GPUDirect Technologies: Direct GPU-to-GPU communication and GPU-to-storage access
- Hardware-Based I/O Virtualization (ASAP²): High-performance network isolation for virtual machines and containers
- Packet Pacing: Sub-nanosecond accuracy for smooth, predictable data flow
- AI & Deep Learning Training Clusters
- High-Performance Computing (HPC)
- Hyperscale & Cloud Data Centers
- High-Frequency Trading (HFT)
- Converged Storage & Compute
| Ordering Part Number | Description | Key Difference |
|---|---|---|
| MCX653106A-HDAT | Dual-Port, 200Gb/s, PCIe 4.0 x16 | Featured Model |
| MCX653105A-HDAT | Dual-Port, 200Gb/s, PCIe 4.0 x16 | Check specific datasheet |
| MCX653105A-HDAL | Dual-Port, 200Gb/s with Cold Plate | Liquid-Cooled Thermal Solution |
| MCX653435A-HDAT | Dual-Port, 200Gb/s, OCP 3.0 SFF | Form Factor for OCP servers |
- Warranty: Full manufacturer warranty provided with all units
- Availability: In stock for fast shipment
- Technical Support: 24/7 access to specialized networking engineering team
- Driver & Firmware: Access to latest stable drivers and firmware
- Custom Solutions: Consultation available for large-scale deployments
