معلومات تفصيلية |
|||
| Model NO.: | ICX 7550-24P-E2 | Transmission Rate: | 1000Mbps |
|---|---|---|---|
| Ports: | 24 | Weight: | 6.11 Kg |
| Operating Temperature: | Operating: 0°c to 45°c | Power Supply: | 1123.7 W |
| Uplinks: | 40 Gbps Qsfp+ | Transport Package: | Carton |
| Specification: | 44cm*40.64cm*4.4cm | Trademark: | Ruckus |
| Origin: | China | ||
منتوج وصف

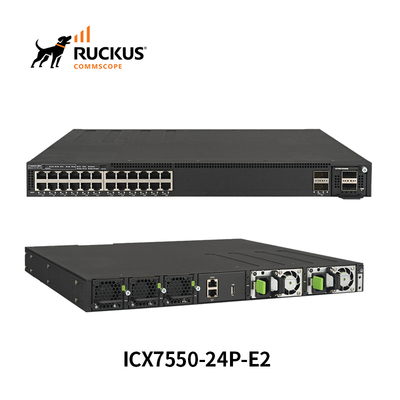

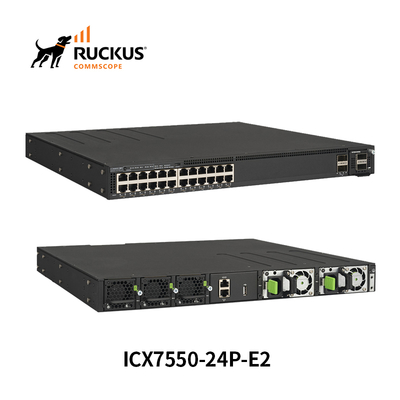

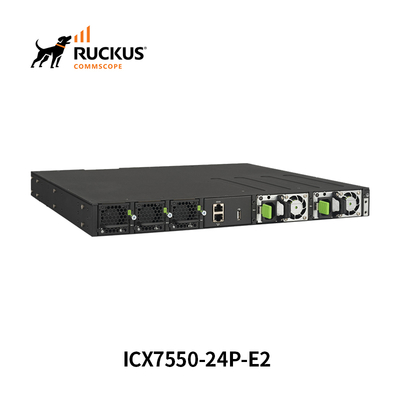

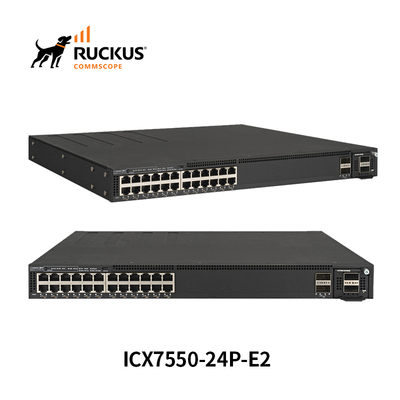

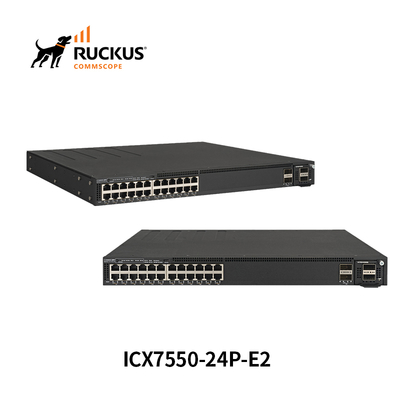

RUCKUS ICX 7550-24P-E2
Mid-range enterprise-class stackable access/aggregation switch
Mid-range enterprise-class stackable access/aggregation switch
The CommScope RUCKUS ICX 7550 switch delivers the premium performance and scalability required for Wi-Fi 6 deployments and beyond with up to 48 ports of multigigabit connectivity and full 90 watts of 802.3bt PoE power per port with perpetual and fast-boot PoE support. It offers market-leading stacking density with up to 12 switches (up to 576 gigabit, multigigabit or fiber ports) per stack and combines chassis-level performance with "pay as you grow" scalability of a stackable solution. The mid-market stackable switch is one of the first in its class to offer 100 GbE uplinks, enabling enterprises to dramatically increase their network capacity while using their existing optical wire infrastructure.
ICX 7550-24P-E2 24-port 10/100/1000 Mbps 802.3at POE+, 2x 40 Gbps QSFP+ dual-mode uplink/stacking ports, modular slot. Bundle
includes 2x 1200W AC power supplies and 3x fans, front to back airflow, port modules sold separately.
includes 2x 1200W AC power supplies and 3x fans, front to back airflow, port modules sold separately.
RUCKUS ICX 7550-24P-E2 | |
Switching capacity (data rate, full duplex) | 368 Gbps |
Forwarding capacity (data rate, full duplex) | 274 Mpps |
10/100/1000 Mbps RJ45 ports | 24 |
100/1000 Mbps/2.5 Gbps RJ45 ports (full duplex only) | - |
100/1000 Mbps/2.5/5/10 Gbps RJ45 downlinks (full duplex only) | - |
Fixed ports: 100/1000 Mbps SFP downlinks | - |
Fixed ports: 1/10 Gbps SFP/SFP+ downlinks | - |
Modular ports: 1/10 Gbps SFP/SFP+ uplinks | 4 |
40 Gbps QSFP+ uplinks (max) | 4 |
40/100 Gbps QSFP28 uplinks (max) | - |
PoE/PoE+ ports | 24 |
Perpetual/Fast boot PoE ports | 24 |
802.3bt (90W) ports | - |
Base IPv4/v6 L3 routing (Static routing, RIP) | y |
Advanced IPv4/v6 L3 routing (BGP, OSPF, RIP, VRRP, PIM, PBR features) | With license |
Aggregated Stacking Bandwidth | 960 Gbps |
Stacking density (Max switches in a stack) | 12 |
Stacking ports (Max ports usable for stacking) | Up to 2 x 40G QSFP+ |
Max stacking distance (between stacked switches) | 10 Km |
Product Description
Company Profile
Company Introduction
Our company has more than10 years of experience, hasa large factory,and strong technical team support, accumu-lated aarge number of customers and expe-rience, can provide you with thelowest priceof products and the best quality service.The agency brands include Mellanox, Ruckus, Aruba, Extreme, etc., main products includes original brand new network switch, network card, wireless Access Point , wireless controller, cable etc.We have 10 million inventory for you tochoose, can provide a variety of types ofproducts, large quantities of supply.After ensuring the accurate arrival of yourgoods, provide customer service 24 hours consultation and technical support.With a professional sales and technical team, we have earned ourselves a high reputation among the world market.
CUSTOMER REVIEW /corporate strength
Ø We have many products of Mellanox, Extreme, Aruba etc. Such as witches, network cards, cables, modules, wireless APs as so on.
Ø We are an elite agent of Mellanox .
Ø We are the largest agents of Extreme in China.
Ø Our main office is in Beijing, and our branches are in Nanjing, Shanghai, Guangzhou,Shenzheng and Hong Kong. We have warehouses in Beijing, Nanjing, and Hong Kong, with a large amount of original and new product inventory, which can achieve fast delivery in multiple locations.
Ø Our products are mainly applicated for PC (high performance computing), cloud computing, data centers, enterprise computing, storage, and has software development capabilities.
Ø We had provided intelligent transformation total solution for many customers in the fields of artificial intelligence, supercomputing, government and enterprise research institutes, universities, the Internet, and other industries. Such as BerryGenomics, FedEx, Tsinghua Research Institute etc.
Ø We are an elite agent of Mellanox .
Ø We are the largest agents of Extreme in China.
Ø Our main office is in Beijing, and our branches are in Nanjing, Shanghai, Guangzhou,Shenzheng and Hong Kong. We have warehouses in Beijing, Nanjing, and Hong Kong, with a large amount of original and new product inventory, which can achieve fast delivery in multiple locations.
Ø Our products are mainly applicated for PC (high performance computing), cloud computing, data centers, enterprise computing, storage, and has software development capabilities.
Ø We had provided intelligent transformation total solution for many customers in the fields of artificial intelligence, supercomputing, government and enterprise research institutes, universities, the Internet, and other industries. Such as BerryGenomics, FedEx, Tsinghua Research Institute etc.
Authorization and Certification
Our company cooperate with many famous brands have, company is nvidia elite agents, sales Mellanox related network products, at the same time also is Extreme, the Ruckus, Aruba, H3C and other gold medal agent has many brands of engineer's qualification certificate, to provide reliable technical support
Packing & Delivery
Our network products are all packaged in brand-new original sealed boxes. They are unopened after leaving the factory. The quality is guaranteed. On the packaging, we use high-density EPE pearl cotton, anti-static air cushion films and other professional cushioning materials, combined with custom hard cardboard boxes for reinforcement. They provide comprehensive protection against shock, moisture and static electricity. We offer various shipping methods such as air express, international dedicated lines, and sea transportation for delivery, covering 100+ countries and regions worldwide. The logistics information can be checked in real time. The products enjoy a one-year warranty. Damaged during transportation can be returned or exchanged for free. You can make your purchase with peace of mind.
FAQ
Q1: What can you buy from us?
A: Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, AccessPoint, etc.
A: Mellanox, Aruba, Rukus, Extreme brand products, including switches, network cards, cables, AccessPoint, etc.
Q2: How about the delivery date?
A: It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.
Q3: What's yourwarranty terms?
A: We supply 12 months warranty time.
Q4: How about the Shipping Method?
A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.
Q5: Can I get some samples?
A: Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.
A: It usually takes 3-5 working days. For specific models, please contact us to check thestock. In the end, the actual consultation shall prevail. We will do our best to deliver as soon as possible.
Q3: What's yourwarranty terms?
A: We supply 12 months warranty time.
Q4: How about the Shipping Method?
A: We use Fedex/DHL/UPS/TNT and other air shipments,sea shipments are also workable. In one words, we could do any shipments that you wanted.
Q5: Can I get some samples?
A: Yes, sample order is available for quality check and market test. You only need to pay the sample cost and express cost.
Q6: What are your core strengths?
A: First-hand supply, Original and new products with the favorable price and perfect after-sales service
A: First-hand supply, Original and new products with the favorable price and perfect after-sales service
Q7: Price questions
A: The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.
A: The inventory turnover is fast, and the cost of each batch of goods fluctuates according to the market price. The final price is subject to the sales quotation. Please understand.
