مفتاح جديد أصلي C9200-24p-a بـ 24 منفذًا بتقنية Poe+ مع ميزة الشبكة
تفاصيل المنتج:
| اسم العلامة التجارية: | Cisco |
| Model Number: | C9200-24P-A |
| وثيقة: | nb-06-cat9200-ser-data-shee...en.pdf |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1pcs |
|---|---|
| الأسعار: | Negotiate |
| تفاصيل التغليف: | الصندوق الخارجي |
| وقت التسليم: | على أساس المخزون |
| Payment Terms: | T/T |
| القدرة على العرض: | العرض بواسطة المشروع/الدفعة |
|
معلومات تفصيلية |
|||
| رقم النموذج: | C9200-24P-A | معدل النقل: | 10/100/1000 ميغابت في الثانية |
|---|---|---|---|
| الموانئ: | 24 | وظيفة: | LACP ، POE ، QOS ، SNMP ، قابلة للتكديس ، دعم VLAN |
| تكنولوجيا: | جيجابت إيثرنت | التراص النطاق الترددي: | 160 جيجابت في الثانية |
| سعة التبديل: | 128 جيجابت في الثانية | حزمة النقل: | التعبئة |
| مواصفة: | 4.4 × 44.5 × 35.0 سم | علامة تجارية: | سيسكو |
| أصل: | أمريكي | ||
| إبراز: | مُبدِّل C9200 بـ 24 منفذًا يدعم تقنية Poe+,24 منفذ PoE + مفتاح,24 Port Poe+ Switch |
||
منتوج وصف

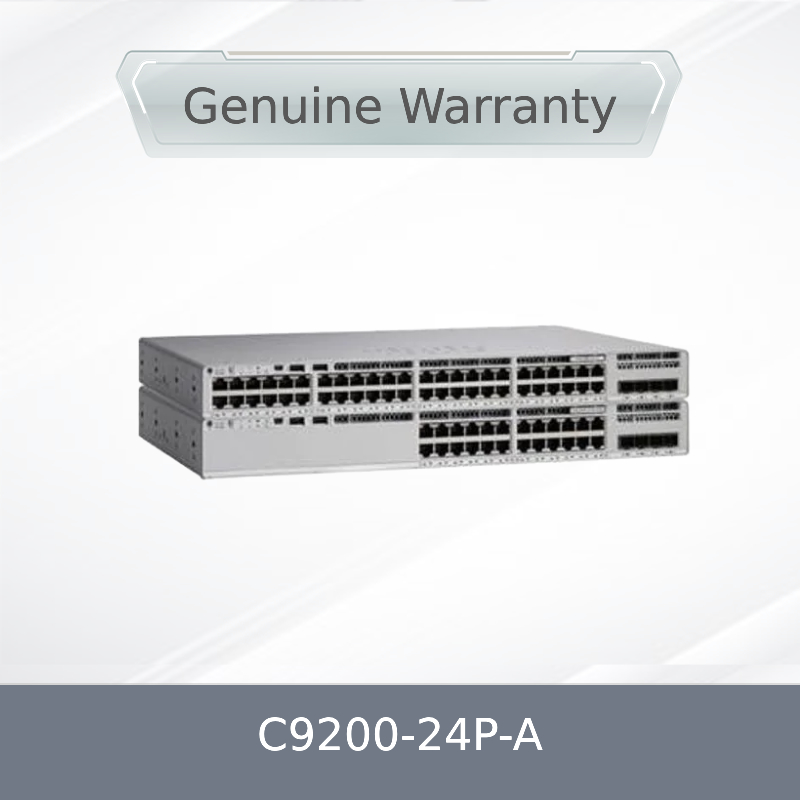

C9200-24P-A
UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure.
Enhanced security with AES-128 MACsec encryption on C9200 and AES-256 MACsec encryption for C9200CX models, policy-based segmentation, and trustworthy solutions for the whole Catalyst 9200 Series.C9200-24P-A
IEEE 802.3at PoE+ (up to 30W per port) is supported on Cisco Catalyst 9200 Series switches to lower the total cost of ownership for deployments that incorporate Cisco IP phones, Cisco Aironet wireless access points, or other standards-compliant PoE+ end devices. PoE+ removes the need to supply wall power to PoE-enabled devices and eliminates the cost of adding electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments. With Cisco Catalyst 9200 Series switches, PoE+ power allocation is dynamic, and power mapping scales up to a maximum of 1440W of PoE+ power.C9200-24P-A
Enhanced security with AES-128 MACsec encryption on C9200 and AES-256 MACsec encryption for C9200CX models, policy-based segmentation, and trustworthy solutions for the whole Catalyst 9200 Series.C9200-24P-A
IEEE 802.3at PoE+ (up to 30W per port) is supported on Cisco Catalyst 9200 Series switches to lower the total cost of ownership for deployments that incorporate Cisco IP phones, Cisco Aironet wireless access points, or other standards-compliant PoE+ end devices. PoE+ removes the need to supply wall power to PoE-enabled devices and eliminates the cost of adding electrical cabling and circuits that would otherwise be necessary in IP phone and WLAN deployments. With Cisco Catalyst 9200 Series switches, PoE+ power allocation is dynamic, and power mapping scales up to a maximum of 1440W of PoE+ power.C9200-24P-A
Full Power over Ethernet Plus (PoE+) capability for up to 48 ports for C9200. Power over Ethernet Plus (PoE+) capability for up to 12 ports, IEEE 802.3bt class 6 and Cisco UPOE capability for up to 8 ports for C9200CX.C9200-24P-A
Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks for C9200 models. C9200CX models are fanless and are powered by internal fixed power supply or optional power adapters, when not powered by upstream IEEE 802.3bt class 6 60W PSE.C9200-24P-A
Flexible power source options from line voltage AC, low voltage DC to High Voltage DC (HVDC) in C9200CX models provide the choices for customers to migrate to efficient DC micro grid powered by renewable energy sources for a sustainable future.
Flexible downlink options with data, PoE+, UPOE, UPOE with mGig for Wi-Fi 6/6E.C9200-24P-A
Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps.
Specification
|
item
|
value
|
|
Forwarding rate
|
190.4 Mpps
|
|
Products Status
|
Stock
|
|
Ports
|
24
|
|
Transmission Rate
|
10/100/1000Mbps
|
|
Function
|
LACP, POE, QoS, SNMP, Stackable, VLAN Support
|
|
Communication Mode
|
Full-Duplex & Half-Duplex
|
|
Model Number
|
C9200-24P-A
|
|
Product Name
|
Ethernet Switch
|
|
Warranty
|
1year
|
